Modulator Rof Electro-optic 1550nm Modulator Intensity Series 40G
Feart
* Call cuir a-steach ìosal
* Bandwidth àrd
* Bholtaids leth-tonn ìosal
* Roghainn gnàthachaidh
Iarrtas
⚫ siostaman ROF
⚫ Sgaoileadh iuchrach Quantum
⚫ Siostaman mothachaidh laser
⚫ Atharrachadh bann-taobh
| Rof-Sreath AM | Rof-AM-07 | Rof-AM-08 | Rof-AM-10 | Rof-AM-13 | Rof-AM-15 | |||
| Wavelength obrachaidh | 780 nm | 850 nm | 1064 nm | 1310 nm | 1550 nm | |||
| Bandwidth | 10GHz | 10GHz | 10/20GHz | 2.5GHz | 50GHz | 10GHz | 20GHz | 40GHz |
| Call cuir a-steach | ＜5dB | ＜5dB | ＜5dB | ＜5dB | ＜4dB | |||
| Co-mheas à bith @DC | ＞20dB | ＞20dB | ＞20dB | ＞20dB | ＞20dB | |||
| VΠ @RF (1KHz) | ＜3V | ＜3V | ＜4V | <3.5V | ＜6V | <5V | ||
| VΠ @Bias | ＜3.5V | ＜3.5V | ＜5V | <5V | <8V | <7V | ||
Fiosrachadh òrdachadh
| Rof | AM | XX | XXG | XX | XX | XX |
| Seòrsa: AM --- Modulator dian | Wavelength: 07--- 780nm 10--- 1060nm 13--- 1310nm 15--- 1550nm | Bandwidth: 10GHz 20GHz 40GHz 50GHz
| Cum sùil air PD: PD--- Le PD | Seòrsa fiber a-staigh: PP--- PM/PM
| Ceangal optigeach: FA--- FC/APC FP--- FC/PC SP--- Gnàthachadh |
R-AM-15-40G
Modulator dian Wavalength 1550nm 40GHz
| Paramadair | samhladh | Min | Taidhp | Max | Aonad | ||||
| Paramadairean optigeach | |||||||||
| Wavelength obrachaidh | l | 1530 | 1550 | 1565 | nm | ||||
| Call cuir a-steach | IL | 4 | 5 | dB | |||||
| Optical tilleadh call | ORL | -45 | dB | ||||||
| Atharraich co-mheas à bith @DC | ER@DC | 20 | 23 | 45 | dB | ||||
| Co-mheas dinamach à bith | DER | 13 | dB | ||||||
| Optical freumhag | Cuir a-steachport | Panda PM Fujikura SM | |||||||
| port toraidh | Panda PM Fujikura SM | ||||||||
| Eadar-aghaidh snàithleach optigeach | FC / PC 、 FC / APC No neach-cleachdaidh airson a shònrachadh | ||||||||
| Paramadairean dealain | |||||||||
| Bandwidth obrachaidh（-3dB） | S21 | 28 | 30 | GHz | |||||
| Voltage leth-tonn Vpi | RF | @50KHz |
| 4.5 | 5 | V | |||
| Bias | @Bias |
| 6 | 7 | V | ||||
| Dìth tilleadh dealain | S11 | -12 | -10 | dB | |||||
| Bacadh a-steach | RF | ZRF | 50 | W | |||||
| Bias | ZBIAS | 1M | W | ||||||
| Eadar-aghaidh dealain | V(f) | ||||||||
Cumhachan Crìochan
| Paramadair | samhladh | Aonad | Min | Taidhp | Max |
| Cuir a-steach cumhachd optigeach | Panns, Max | dBm | 20 | ||
| Cuir a-steach cumhachd RF | dBm | 28 | |||
| bias voltage | Vbias | V | -15 | 15 | |
| Teòthachd obrachaidh | Barr | ℃ | -10 | 60 | |
| Teòthachd stòraidh | Tst | ℃ | -40 | 85 | |
| Taiseachd | RH | % | 5 | 90 |

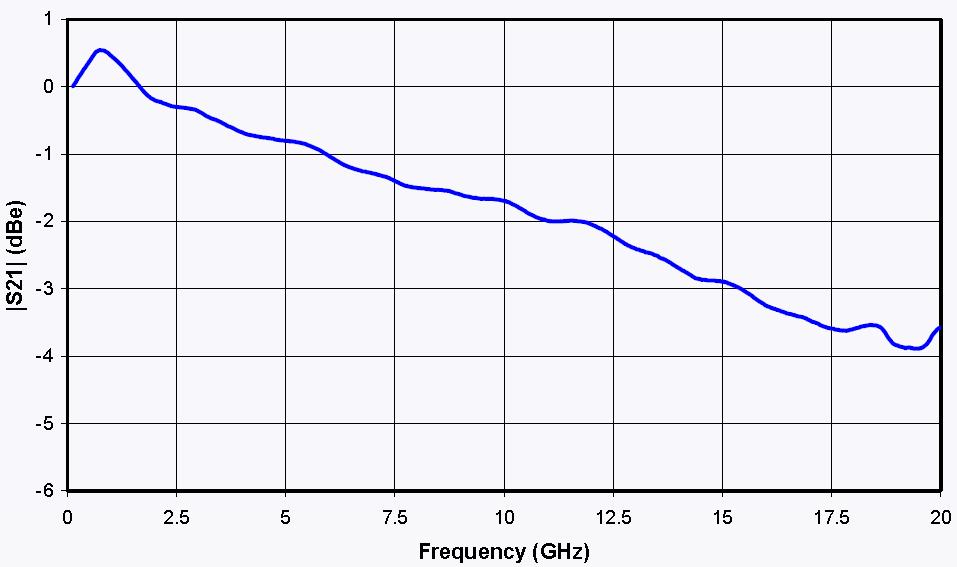

S21 Currachd
&S11 Curve
S21&s11 lùban
Diagram meacanaigeach
| PORT | samhladh | Thoir an aire |
| Anns | Port cur-a-steach optigeach | PM freumhag (125μm/250μm) |
| A-mach | Port toraidh optigeach | Roghainn PM agus SMF |
| RF | Port cuir a-steach RF | SMA(f) |
| Bias | Port smachd bias | 1,2 Bias, 34-N/C |
